Product Description

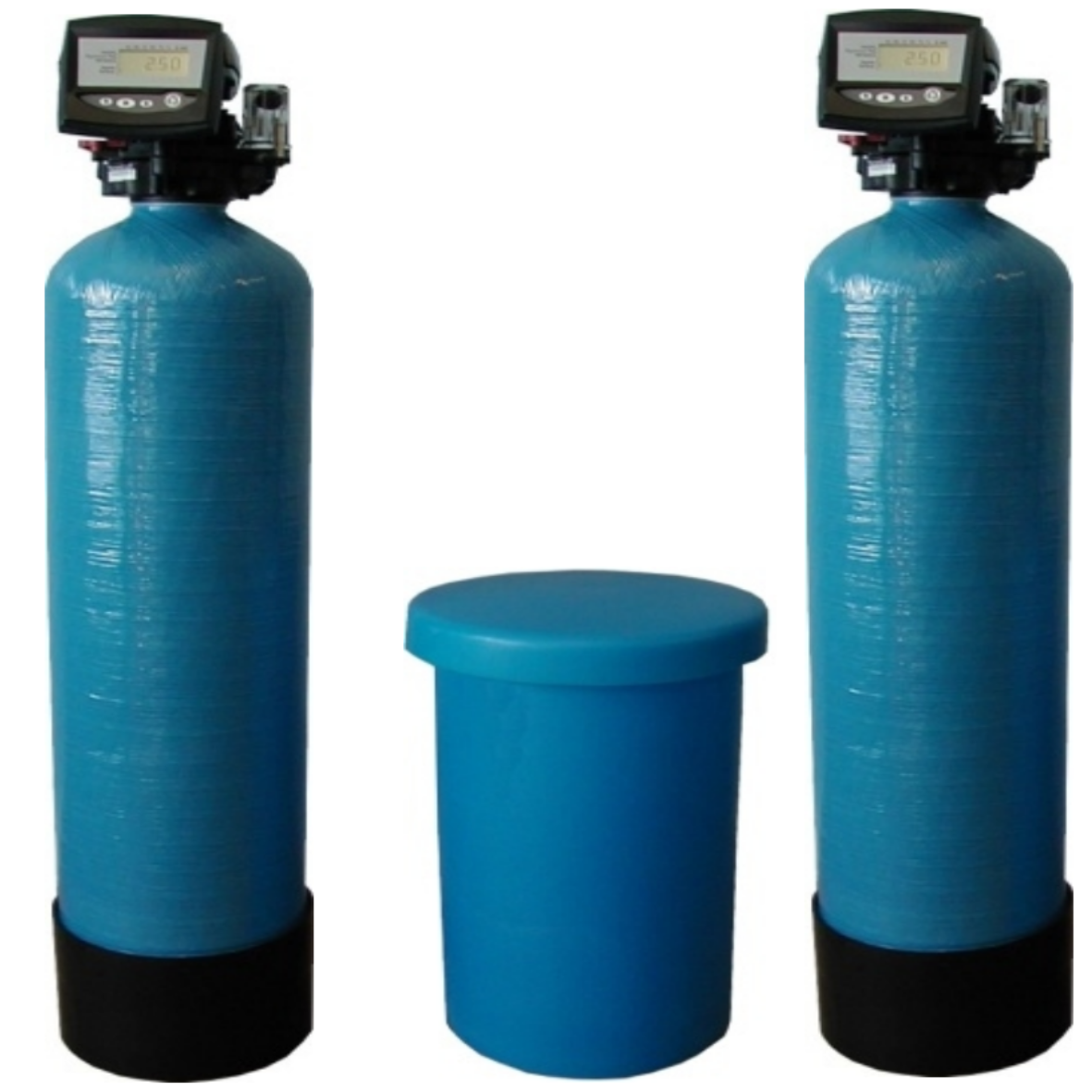

Duplex water softeners consist of two vessels filled with softening resin and one brine tank which is used to regenerate each vessel in turn. In normal use one vessel is on line (duty) and the other in standby. When the duty vessel becomes saturated it is regenerated while the standby unit becomes the duty unit. Systems are sized so they run for at least 12 hours. Parallel systems are also available. This solution is ideal if you require constant softened water. Available in many sizes depending on your flow rate and capacity. Reduces the amount of salt required as it utilises a high quality softening resin.
Specification
- Inlet/Outlet: 2"
- Drain: 1.5"
- Max Flow: 17 m³/hr
- Pressure: 1.5 to 8 bar
- Valve: 298-764

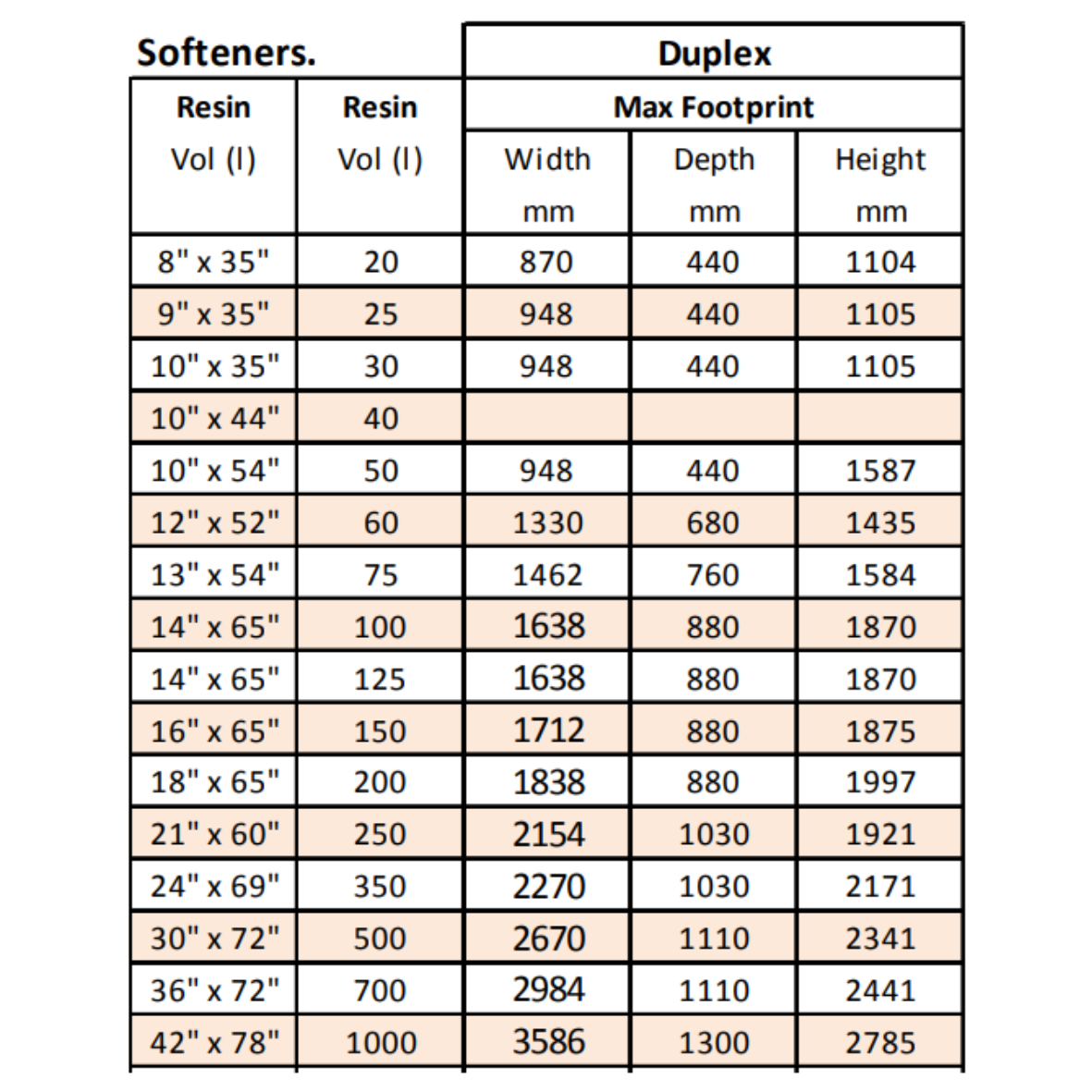

| Valve |
Volume |
Salt |
Size |
Flow Rate |
Capacity |
| 298 |
250L |
37.5kg |
21"x60" |
10m³/hr |
42m³ |
| 298 |
350L |
52.5kg |
24"x69" |
14m³/hr |
58m³ |
| 298 |
500L |
75kg |
30"x72" |
17m³/hr |
83m³ |
| 298 |
700L |
105kg |
36"x72" |
17m³/hr |
116m³ |
