Product Description
Duplex water softeners consist of two vessels filled with softening resin and one brine tank which is used to regenerate each vessel in turn. In normal use one vessel is on line (duty) and the other in standby. When the duty vessel becomes saturated it is regenerated while the standby unit becomes the duty unit. Systems are sized so they run for at least 12 hours. Parallel systems are also available.
Specification
- Inlet/Outlet: 1"
- Drain: 3/4"
- Max Flow: 6.8 m³/hr
- Pressure: 1.5 to 8 bar

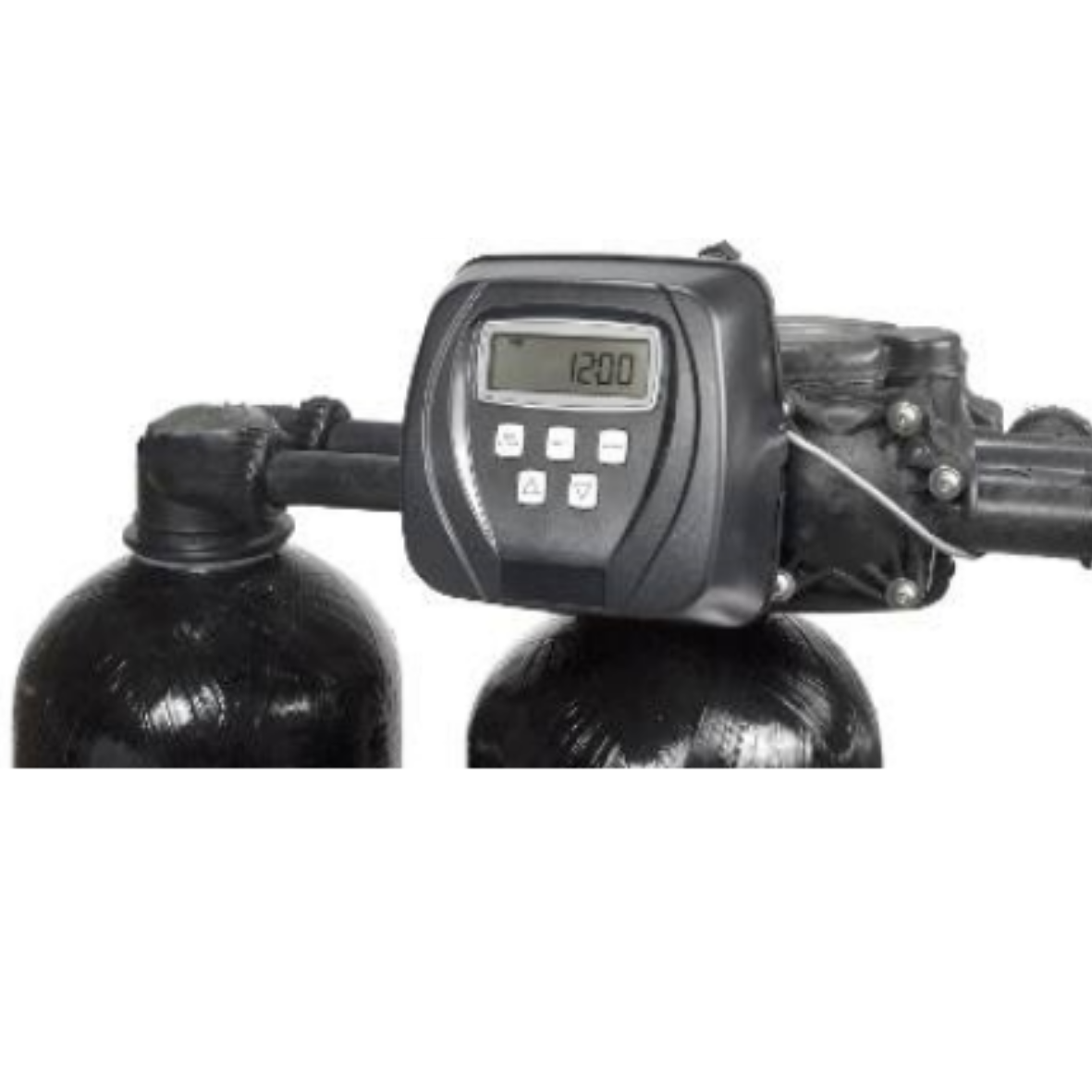

- Valve: WS1 TT
| Valve |
Volume |
Salt |
Size |
Flow Rate |
Capacity |
| WS1TTCI |
10L |
1.5kg |
8"x17" |
0.4m³/hr |
1.5m³ |
| WS1TTCI |
20L |
3kg |
8"x35" |
0.8m³/hr |
3.3m³ |
| WS1TTCI |
30L |
4.5kg |
10"x35" |
1.2m³/hr |
5m³ |
| WS1TTCI |
40L |
6kg |
10"x44" |
1.6m³/hr |
6.67m³ |
| WS1TTCI |
50L |
7.5kg |
10"x54" |
2m³/hr |
8.3m³ |
| WS1TTCI |
60L |
9kg |
12"x48" |
2.4m³/hr |
10m³ |
| WS1TTCI |
75L |
11.25kg |
13"x54" |
3m³/hr |
12.5m³ |
| WS1TTCI |
100L |
15kg |
14"x65" |
4m³/hr |
17m³ |
| WS1TTCI |
125L |
18.75kg |
14"x65" |
5m³/hr |
20.8m³ |
| WS1TTCI |
150L |
22.5kg |
16"x65" |
6m³/hr |
25m³ |
| WS1TTCI |
200L |
30kg |
18"x65" |
6.4m³/hr |
33m³ |
| WS1TTCI |
250L |
37.5kg |
21"x69" |
6.4m³/hr |
42m³ |
| WS1TTCI |
350L |
52.5kg |
24"x69" |
6.4m³/hr |
58m³ |
