Product Description

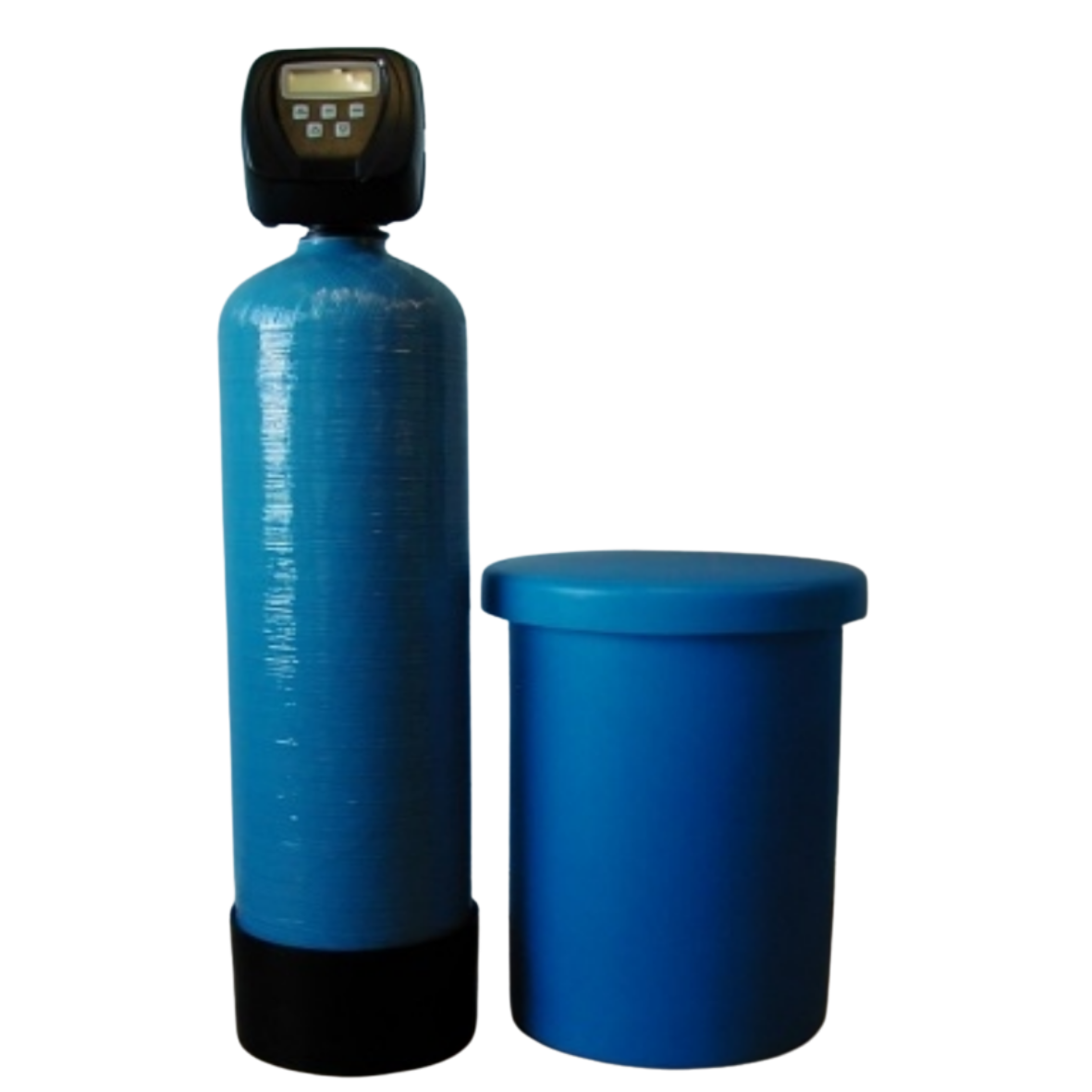

Simplex softeners use high quality vessels and superior softening resin. Metered water softeners use a meter to measure the amount of water used and then calculates when the softener needs to regenerate. Next to the unit is a separate brine tank that is included with the softener.
Specification
- Inlet/Outlet: 1"
- Drain: 3/4"
- Max Flow: 6.1 m³/hr
- Pressure: 1.5 to 8 bar
- Valve: WS1CI
| Valve |
Volume |
Salt |
Size |
Flow Rate |
Capacity |
| WS1CI |
20L |
3kg |
8"x35" |
0.8m³/hr |
3.3m³ |
| WS1CI |
30L |
4.5kg |
10"x35" |
1.2m³/hr |
5m³ |
| WS1CI |
40L |
6kg |
10"x44" |
1.6m³/hr |
6.67m³ |
| WS1CI |
50L |
7.5kg |
10"x54" |
2m³/hr |
8.3m³ |
| WS1CI |
60L |
9kg |
12"x48" |
2.4m³/hr |
10m³ |
| WS1CI |
75L |
11.25kg |
13"x54" |
3m³/hr |
12.5m³ |
| WS1CI |
100L |
15kg |
14"x64" |
4m³/hr |
17m³ |
| WS1CI |
125L |
18.75kg |
14"x65" |
5m³/hr |
20.8m³ |
| WS1CI |
150L |
22.5kg |
16"x65" |
6m³/hr |
25m³ |
General conditions for installation
Connection IN & OUT: 1"
Drain connection(*): 3/4" or 1" for DLFC flows over 10 gpm
Electrical rating: 230V 50Hz 12V Transformer
Max power rating: 6W
IP protection class: Double isolated transformer
Minimum inlet pressure: 200 kPa (2 bar)
Maximum inlet pressure: 600 kPa (6 bar)
Vacuum: no allowance
Average pressure loss (**): 100 kPa (1 bar)
Min-max water temperature: 5-35°C
Remarks
(*) Dependent on Drain line flow control.
(**) Under normal circumstances.
It is always recommended to install a 25 micron cartridge filter before a softener.
Resin
Type: Strong acid cation resin - softening ,food grade quality
Life span: 15 years under normal circumstances
Ion exchange ( for average salt consumption of 150 g/L )
