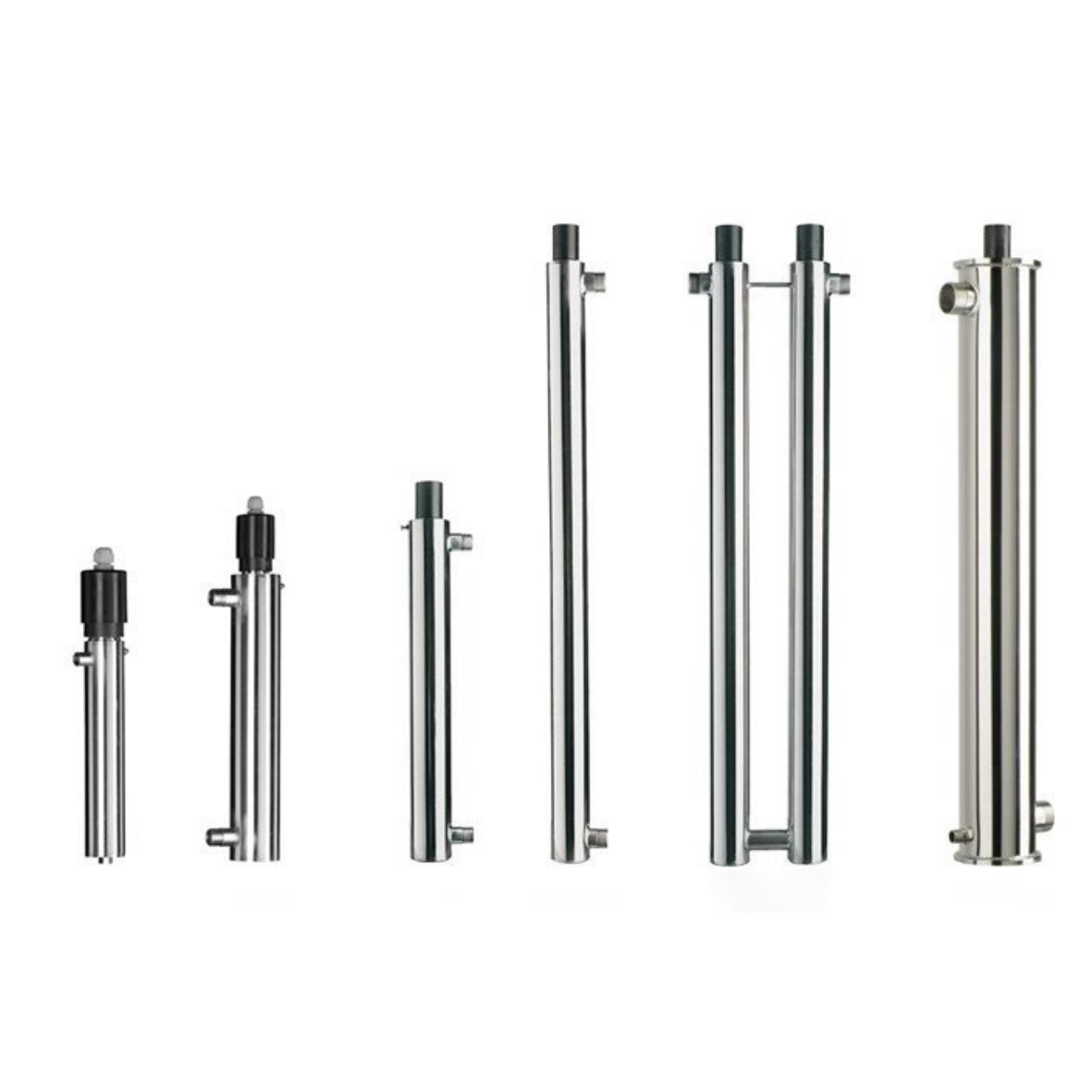

480 LCD PLUS, 5.1m³/hr, 880mm, Industrial
The Industrial range are made in Italy to ISO 9001 quality standards. These WRAS approved products are 304 stainless-steel and come with a control panel with an LCD display, an hours run meter and alarm contacts. Upgrade to a PLUS system for a UV intensity meter and a high temperature shut down.
Inside the stainless-steel chamber runs a sleeve made of a special quartz glass. This glass is transparent to UV rays and inside this is a UV lamp. The quartz sleeve is sealed into the chamber at each end, creating a water jacket around the lamp. Water enters in the system from one end, and exits out the other. As the water passes through the chamber, it is exposed to the ultraviolet light and micro-organisms are inactivated.
Ultraviolet light has been used for many years against micro-organisms such as bacteria and viruses. Without the need for chemicals or additives, these ultraviolet water systems can disinfect your water systems by destroying the micro-organisms DNA and ability to reproduce. UV disinfection is fast and leaves no chemical residuals in the treated water.
|Name||Watt||Max Flow Rate at 30mj||Connection||Length (mm)|
|UV 405 LCD (+ PLUS)||1 x 30||1.1m³/h||3/4"||524|
|UV 412 LCD(+ PLUS)||1 x 40||2.7m³/h||1"||925|
|UV 440 LCD(+ PLUS)||1 x 40||3.6m³/h||1 1/2"||880|
|UV 450 LCD||2 x 40||4.5m³/h||1 1/2"||925|
|UV 480 LCD(+ PLUS)||1 x 80||5.1m³/h||1 1/2"||880|
|UV 550 LCD(+ PLUS)||2 x 40||8m³/h||1 1/2"||985|
|UV 80/2 LCD(+ PLUS)||2 x 40||16m³/h||1 1/2"||985|
