SS-i1575, 152 l/min, 12200mm

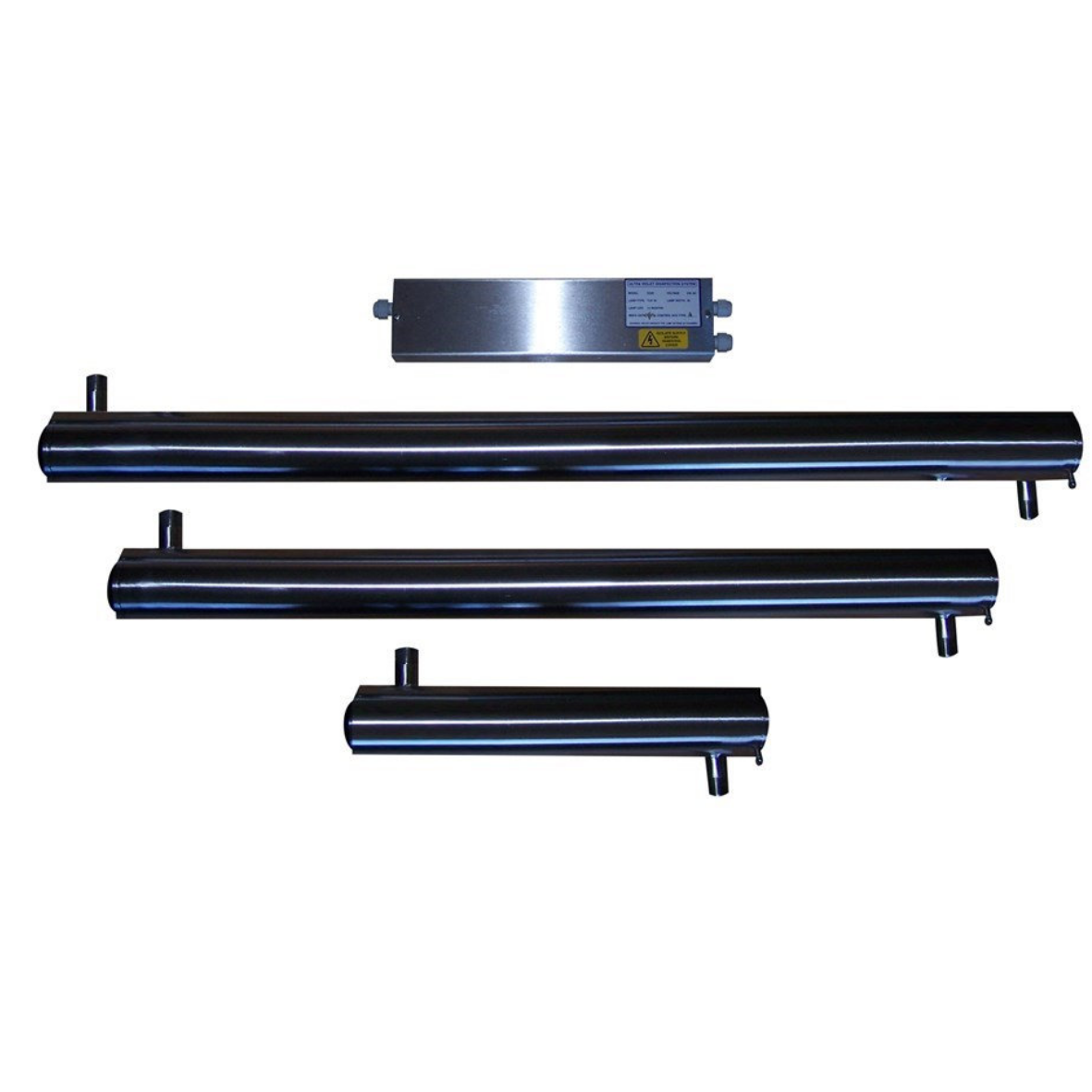

The SS range are made of a 316L stainless-steel housing. Coming with a separate type A control box as standard containing the lamp drive circuits certified to IP40. UV Dose is 30 mJ/cm2, flow rate rated for 98% transmission. The SS-i range contains a HF electronic PSU with running meter, a LED indicator for lamp failure as well as a failure alarm. Maximum pressure = bar.
Inside the stainless-steel chamber runs a sleeve made of a special quartz glass. This glass is transparent to UV rays and inside this is a UV lamp. The quartz sleeve is sealed into the chamber at each end, creating a water jacket around the lamp. Water enters in the system from one end, and exits out the other. As the water passes through the chamber, it is exposed to the ultraviolet light and micro-organisms are inactivated.
Ultraviolet light has been used for many years against micro-organisms such as bacteria and viruses. Without the need for chemicals or additives, these ultraviolet water systems can disinfect your water systems by destroying the micro-organisms DNA and ability to reproduce. UV disinfection is fast and leaves no chemical residuals in the treated water.
|Name||Max Flow Rate at 30mj||Connection||Length (mm)|
